Fan Kit
It is not always an easy, cut-and-dry, mounting solution to add an automotive electric fan to your street rod or muscle car. Often engine swaps, accessory drive conversions, and extra thick radiators all add up to not much room for automotive cooling fans. Fitting an electric fan that will cool your engine properly is made much easier with the use of a DC brushless fan that is designed to work in conjunction with a shroud that provides full coverage of your radiator’s core.

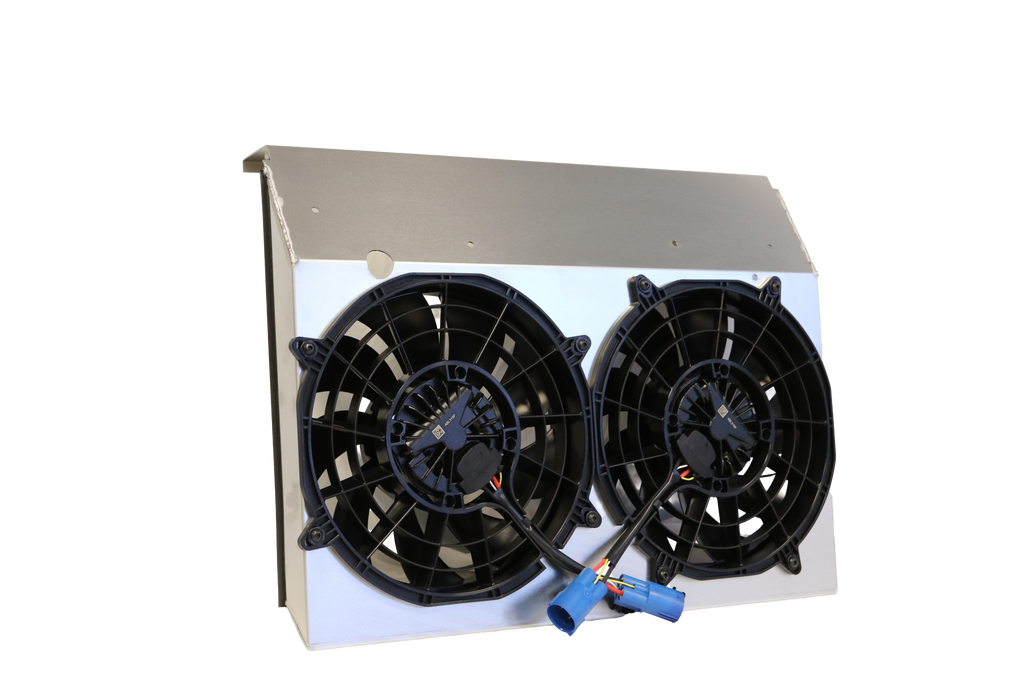

An industry exclusive solution for mounting SPAL's 500-watt brushless fans to your C6 Corvette. All Aluminum fabricated shroud offering decades of performance and durability. This shroud is full size to fit DeWitts C6 cut down radiator.
The new SPAL brushless fans are ideal for engine and oil cooling, HVAC, and auxiliary cooling applications. These new fans were developed and designed with cutting edge technology, high energy ferrite magnets, and a state-of-the-art sine wave sensorless drive. These motors reach more than 82% electrical efficiency, placing our 500W power range products among the most efficient motors available anywhere. The result is high air-side performance at minimum electrical load. SBL motors are fully sealed to be IP68 and IP6K9K compliant and can operate in the presence of many aggressive or hazardous substances.
Standard Features
- PWM and analog input for continuous adjustment of fan speed.
• Open collector diagnostic output.
• Meets EMC directives: 2006/28/EC.
• Low weight motor.
• Higher ambient working temperature.
• Protection against:
Overheating.
Overcurrent and overvoltage.
Mechanical overload.
Locked rotor.
Load dump.
Advanced Features
- High efficiency and low power consumption.
• Low noise, vibration, and harshness.
• Electronic controls with on-board diagnostics.
• Motor with integrated electronics.
• Battery compensation system.
• Proprietary sine-wave sensorless drive (SPAL-patent).
• Low inertia inner rotor design.
Complete Kit - 32-SP473SC
Specs:
Cooling Fan Type: Electric
Fan Quantity: Dual
Fan Diameter: 11 Inch
Maximum Fan CFM: 1442 CFM
Maximum Fan RPM: 2800 RPM
Fan Flow Type: Pull
Rotation: Counterclockwise/Reverse
Blade Type: Non-Flex
Blade Style: Curved
Blade Count: 7-blade
Blade Material: Plastic
Blade Color: Black
Hub Material: Plastic
Hub Color: Black
Starting Amps: 1 amps
Running Amps: 40 amps
Voltage: 12 volts
Outside Diameter: 12.8"
Overall Length: 23.5"
Overall Height: 15.25"
Overall Thickness: 3"
Material Thickness: .063"
Minimum Width: 23.5"
Clutch Required: No
Shroud Included: Yes
Hardware Included: Yes
MFG. Part #: 32-SP473SC
Sold in Quantity: Kit
