1955-60 Corvette Pro Series

: In stock

Regular price $749.99

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

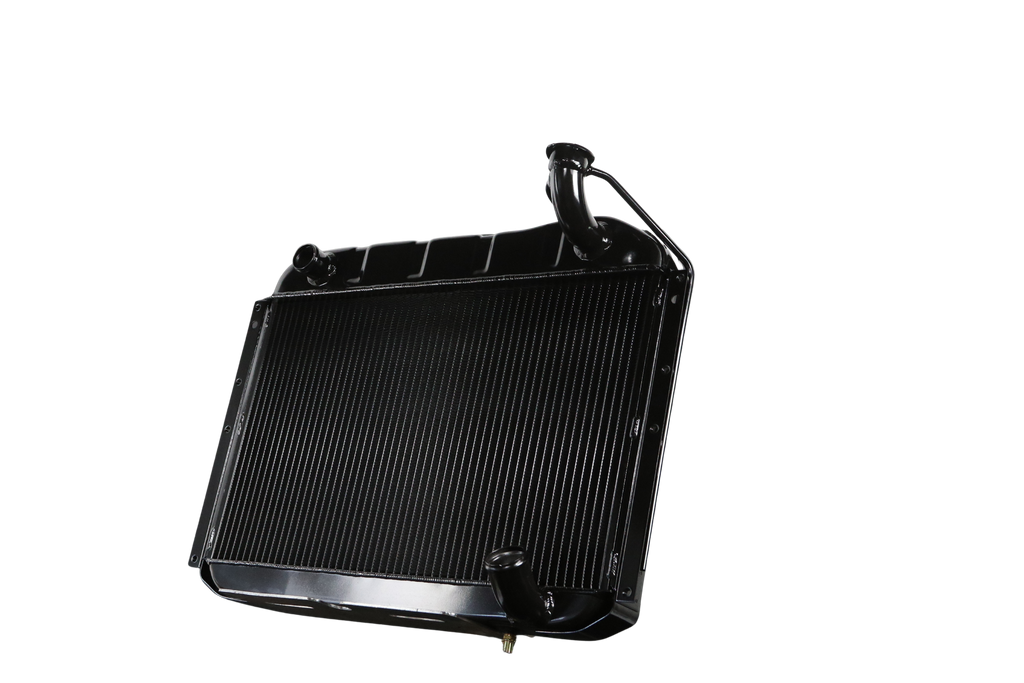

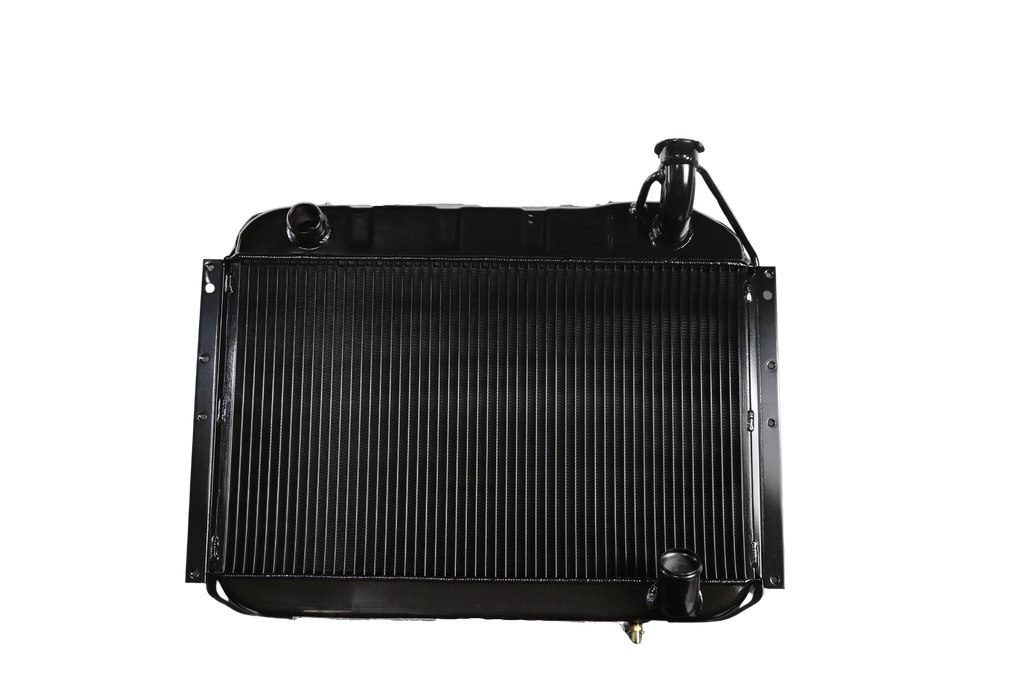

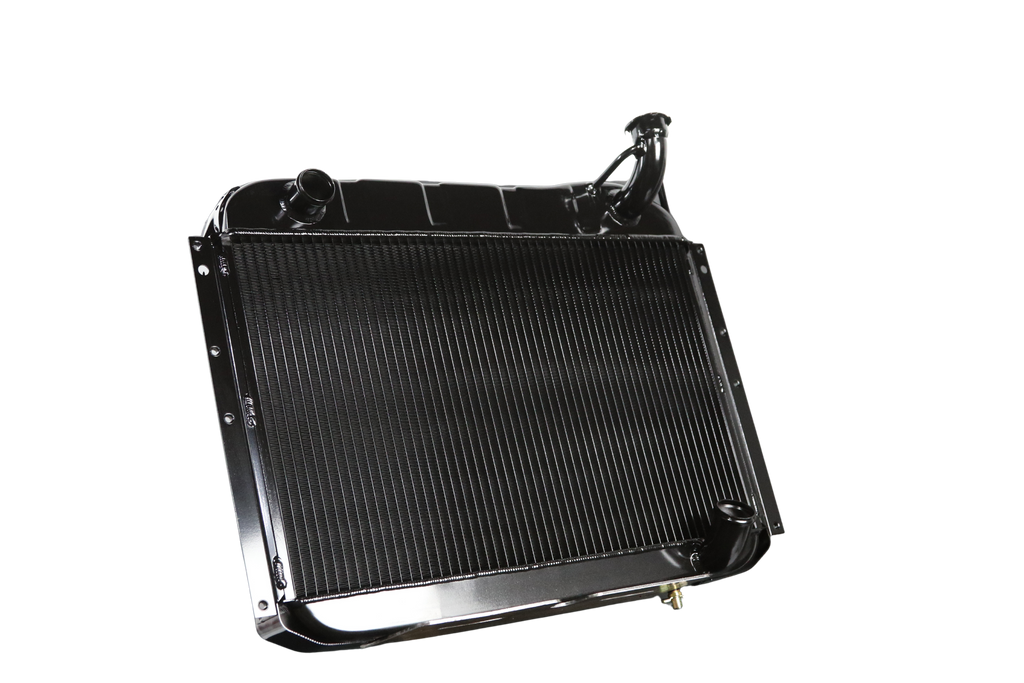

Radiator

These all-aluminum radiators are the ONLY true Direct Fit® radiators on the market. Direct Fit® is our official trademark and it means your radiator will fit, without modifications. Each DeWitts radiator is expertly TIG welded, free of epoxy, and come with a limited lifetime warranty.

This radiator features exact reproduction press formed end tanks and factory side mounting brackets. Each Pro Series aluminum radiator features two rows of 1.0" wide cooling tubes, with louvered fin, and is brazed in our state-of-the-art aluminum brazing furnace. The Pro Series offers 33% more cooling efficiency over original equipment while maintaining the same period correct styling.

Specifications:

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Single Pass

Single Pass

Radiator Flow Direction:

Downflow

Downflow

Material Type:

Aluminum

Copper & Brass

Inlet Location:

Upper Driver side

Upper Driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

Honeycomb Core

Tube Size:

1.00"

N/A

Core Width:

23.00"

24.00"

Core Height:

13.25"

14.00"

Overall Width:

26.25"

26.25"

Core Thickness:

2.25"

2.00"

Overall Thickness:

3.25"

3.25"

Overall Height:

18.75"

18.75"

Cap Included:

No

No

Finish:

Natural or Black

Black

Filler Neck Height:

1.00"

N/A

Inlet Size:

1.5

1.5

Outlet Size:

1.75

1.75

Weight:

12 lbs

19 lbs

BTU/M Rating

4637

3128

Cooler Thread Size:

5/16" Inverted Flare

 5/16" Inverted Flare



55-57 Fan

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a high performance 16" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.

This package should only be used on cars with alternator conversions. Due to the fan motor size, there may be interference with the factory suspension on 1958-60 model Corvettes.

Specifications:

16" SPAL Fan

Blade Diameter:

15.25"

Blade Orientation:

Straight

CFM:

1918

Overall Width:

15.75"

Overall Height:

16.3"

Fan Thickness:

3.5"

Amps:

21.6

Fan SKU #:

32-SP30102120

Rotation:

CCW

Weight:

6.7 lbs

# of Blades:

10

Color:

Black

Material:

Plastic

Push/Pull

Pull

Fuse Required:

40 amp

Voltage:

12V



58-60 Fan

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a low-profile 16" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.

This package should only be used on cars with alternator conversions. The low-profile fan is needed to clear the factory suspension (sway bar) on 1958-1960 model Corvettes.

Specifications:

16" SPAL Fan

Blade Diameter:

15.25"

Blade Orientation:

Straight

CFM:

1469

Overall Width:

15.75"

Overall Height:

16.3"

Fan Thickness:

2.5"

Amps:

11

Fan SKU #:

32-SP30102120

Rotation:

CCW

Weight:

6.7 lbs

# of Blades:

10

Color:

Black

Material:

Plastic

Push/Pull

Pull

Fuse Required:

25 amp

Voltage:

12V
