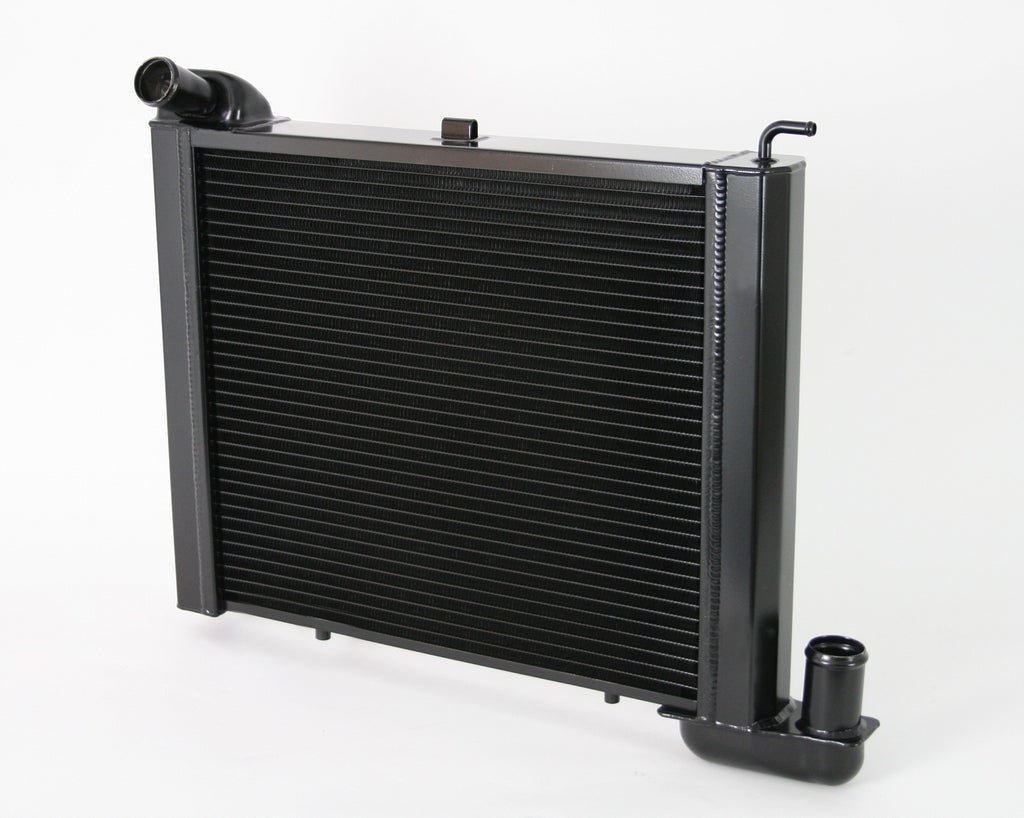

1963-1967 Base Model Corvette Direct Fit® Radiator

: In stock

Regular price $784.99

Selected Part Number: 32-1139063M
Have a question?

Click "Need Help?" in the lower right or click here to ask a question!

Ordering from Canada? Customs and import tax may apply.

Radiator

These all-aluminum radiators are the ONLY true Direct Fit® radiators on the market. Direct Fit® is our official trademark and it means your radiator will fit, without modifications. Each DeWitts radiator is expertly TIG welded, free of epoxy, and come with a limited lifetime warranty.

This radiator features press formed end tanks and factory located mounting pins. Each Pro Series aluminum radiator features two rows of 1" wide cooling tubes, with louvered fin, and is brazed in our state-of-the-art aluminum brazing furnace. The Pro Series offers 33% more cooling efficiency over original equipment while maintaining the same fit.

Specifications:

DeWitts Direct Fit®

Original Equipment

Radiator Style:

Single Pass

Single Pass

Radiator Flow Direction:

Crossflow

Crossflow

Material Type:

Aluminum

Aluminum

Inlet Location:

Upper Driver side

Upper Driver side

Outlet Location:

Lower passenger side

Lower passenger side

Row Quantity:

2

Single row plate

Tube Size:

Pro 1"/HP 1.25"

N/A

Core Width:

18.00"

22.5”

Core Height:

16.75"

16.75”

Overall Width:

22.5”

22.5”

Core Thickness:

2.25"

2.875”

Overall Thickness:

3”

2.875”

Overall Height:

16.75”

16.75”

Cap Included:

No

No

Finish:

Natural or Black

Black

Filler Neck Height:

N/A

N/A

Inlet Size:

1.5”

1.5”

Outlet Size:

1.75”

1.75”

Cooler Thread Size:

5/16" Inverted Flare

 5/16" Inverted Flare

Fan

This fan package includes our Direct Fit® aluminum radiator, full face aluminum shroud with six (6) rubber check valves (flaps), and a high performance 16" SPAL Fan. SPAL is a world leader in the design and manufacture of high-quality electric axial fans for automotive use. The kit comes with a wiring harness and temperature switch for fan operation.

Specifications:

16" SPAL Fan

Blade Diameter:

15.25"

Blade Orientation:

Straight

CFM:

1918

Overall Width:

15.75"

Overall Height:

16.3"

Fan Thickness:

3.5"

Amps:

21.6

Fan SKU #:

32-SP30102120

Rotation:

CCW

Weight:

6.7 lbs

# of Blades:

10

Color:

Black

Material:

Plastic

Push/Pull

Pull

Fuse Required:

40 amp

Voltage:

12V
