Radiator

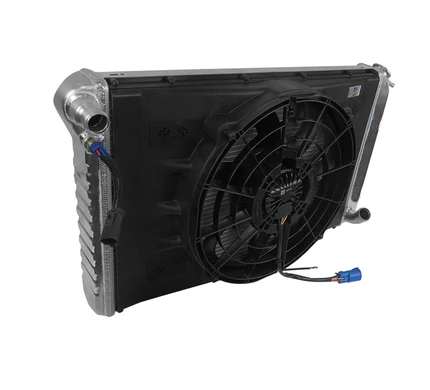

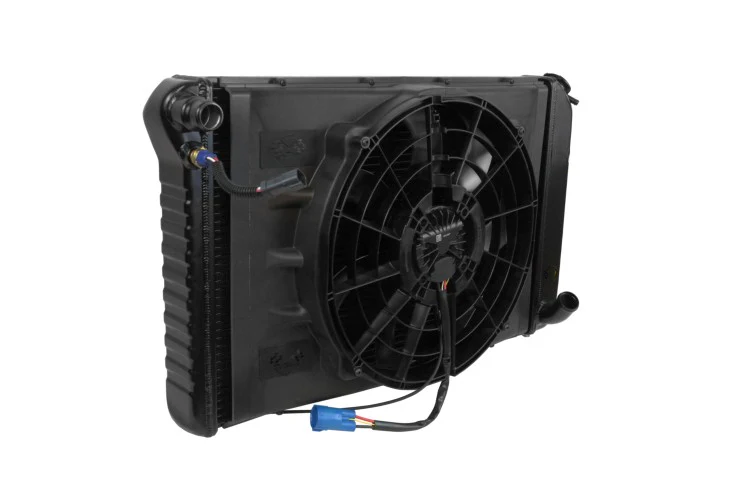

The most powerful cooling combination available for the third generation Corvette, or C3. This radiator and fan pairing provides the highest heat rejection package ever created. A traditional DeWitts Pro-series aluminum radiator with two rows of 1.0" wide cooling tubes provides a 25% increase in radiator cooling performance alone. Then mate an industry exclusive 500-watt SPAL brushless fan to the radiator using DeWitts aero inspired injection molded shroud and you have unmatched cooling power and performance.
The new SPAL brushless fans were developed and designed with cutting edge technology, high energy ferrite magnets, and a state-of-the-art sine wave sensorless drive. These motors reach more than 82% electrical efficiency, placing the 500-watt power range products among the most efficient motors anywhere. The result is high air-side performance at minimum electrical load. These brushless motors are fully sealed to be IP68 and IP6K9K compliant and can operate in the presence of many aggressive or hazardous substances.
Conventional Combos:
32-5139077M (Pro Series Direct Fit®, natural finish, manual trans)
32-5139077A (Pro Series Direct Fit®, natural finish, auto trans)
32-5239077M (Pro Series Direct Fit®, Black Ice finish, manual trans)
32-5239077A (Pro Series Direct Fit®, Black Ice finish, auto trans)
LS Swap Combos:
32-7139077M (Pro Series Direct Fit®, natural finish, no cooler)
32-7139077A (Pro Series Direct Fit®, natural finish, auto trans cooler)
32-7239077M (Pro Series Direct Fit®, Black-Ice finish, no cooler)
32-7239077A (Pro Series Direct Fit®, Black-Ice finish, auto trans cooler)
Radiator Specs
|
|
Conventional |
LS Swap |
|
Radiator Style: |
Single Pass |
Single Pass |
|
Radiator Flow Direction: |
Crossflow |
Crossflow |
|
Material Type: |
Aluminum |
Aluminum |
|
Inlet Location: |
Upper driver side |
Upper passenger side |
|
Outlet Location: |
Lower passenger side |
Lower passenger side |
|
Row Quantity: |
2 |
2 |
|
Tube Size: |
1.00" |
1.00" |
|
Core Width: |
26.25" |
26.25" |
|
Core Height: |
18.5” |
18.5” |
|
Overall Width: |
30.5” |
30.5” |
|
Core Thickness: |
2.25" |
2.25" |
|
Overall Thickness w/ Fan: |
6.75” |
6.75” |
|
Filler Neck Height: |
1” |
1” |
|
Cap Included: |
No |
Yes |
|
Finish: |
Natural or Black |
Natural or Black |
|
Inlet Size: |
1.5” |
1.25” |
|
Outlet Size: |
1.75” |
1.5” |
|
Cooler Thread Size: |
5/16" Inverted Flare |
3/8" Pipe Thread |
Fan
Brushless Fan Standard Features
- PWM and analog input for continuous adjustment of fan speed.
- Open collector diagnostic output.
- Meets EMC directives: 2006/28/EC.
- Low weight motor.
- Higher ambient working temperature.
- Protection against:
- Overheating
- Overheating
- Overcurrent and overvoltage
- Mechanical overload
- Locked rotor
- Load dump
Brushless Fan Advanced Features
- High efficiency and low power consumption.
- Low noise, vibration, and harshness.
- Electronic controls with on-board diagnostics.
- Motor with integrated electronics.
- Battery compensation system.
- Proprietary sine-wave sensorless drive (SPAL-patent).
- Low inertia inner rotor design.
Fan Specs
| Specs | Fan/Shroud |
| Cooling Fan Type: | Electric |
| Fan Quantity | Single |
| Fan Diameter | 17" |
| Meximum Fan CFM | 2430 CFM |
| Maximum Fan RPM | 2800 RPM |
| Fan Flow Type | Pull |
| Rotation | Counterclockwise/Reverse |
| Blade Type | Non-flex |
| Blade Style | Curved |
| Black Count | 7-blade |
| Blade Material | Plastic |
| Blade Color | Black |
| Hub Material | Plastic |
| Hub Color | Black |
| Starting Amps | 1 amps |
| Running Amps | 33 amps |
| Voltage | 12 volts |
| Overall Shroud Length | 27.5" |
| Overall Shroud Height | 18.64" |
| Overall Shroud Thickness | 4.015" |
| Shroud Material Thickness | .120" |
| Minimum Width | 22.50" |
| Clutch Required | Non-flex |
| Shroud Included | Yes |
| Sold in Quantity | Kit |
